‘hey jarvis’

What is ABxM?

The ABxM Framework is an open platform designed to experiment with agent-based (individual-based) systems. It aims to standardize modelling and simulation tools to enhance transparency and repeatability in research. It focuses on dynamic systems with locally interacting, autonomous, goal-oriented entities and supports both exploratory and goal-oriented simulations, such as optimization.
The framework comprises class libraries centered around the core agent library, ABxM.Core, which includes functionality for agent-based modelling and an interoperability library for Rhino 6 and later. ABxM.Core defines base classes for behaviors, agents, agent systems, environments, and a Solver class. It provides implementations for various systems, including vector-based (“Boid”), point-based (“Cartesian”), matrix-based, mesh, and network systems, allowing for the extension of its functionality through add-ons while using the core as the common infrastructure.

Placement rules

Creating a rule set for what constitutes as a correct block placement would directly inform the logic for constructing the various nodes used in this project.
The rule set developed would allow for a margin of error so that the system can cope with slight misalignments, but also ensure a stable tower.

Methodology

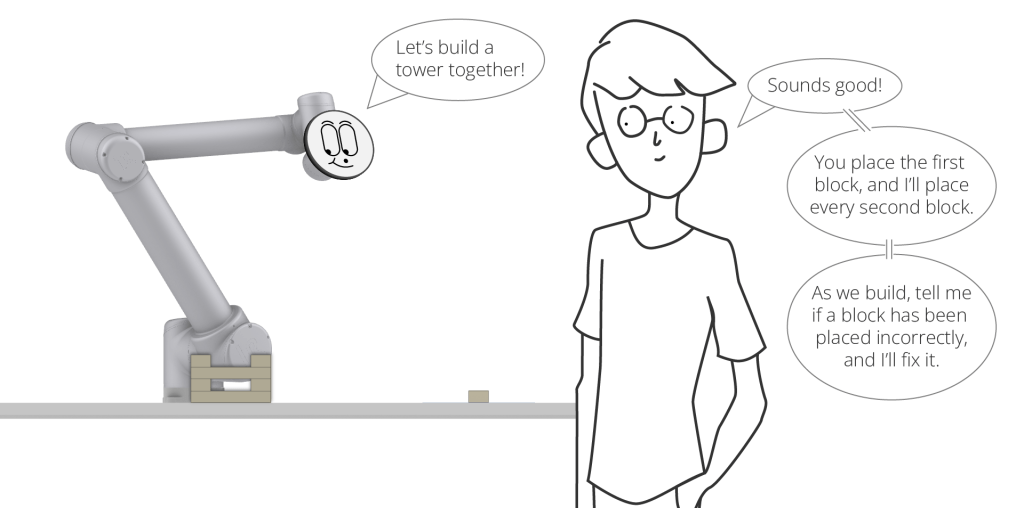

For this project, the goal was to create a Jenga tower that is as high and stable as possible through a Human-Robot collaborative process. To achieve this, the focus was on precision and improving communication between the robot and the human.

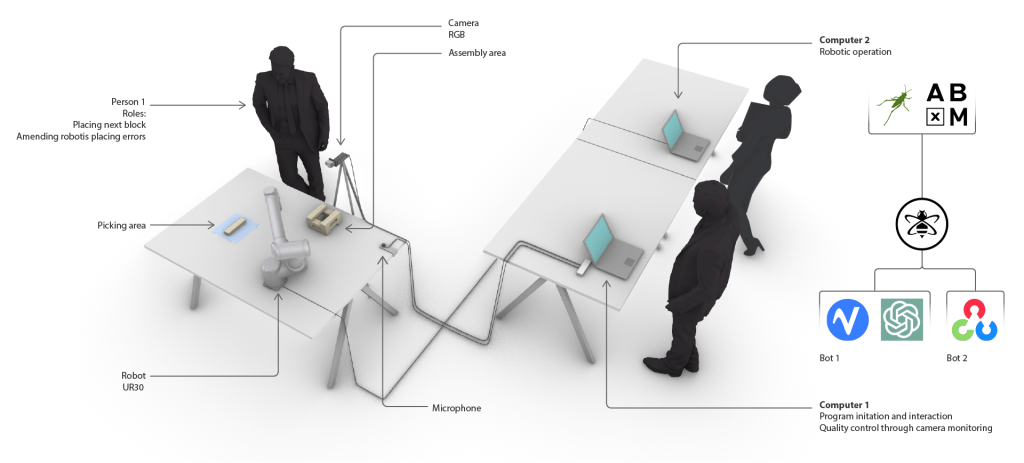

The task was divided among two computers:
Computer 1:Runs the MQTT Broker (HIVEMQ), facilitating communication between all computers. It is also responsible for human interaction, using speech-to-text and text-to-speech libraries and a trained Generative AI to answer task-related questions, handling validation, and computer vision techniques using OpenCV to ensure each block is positioned correctly and aligned properly.

Execution logic

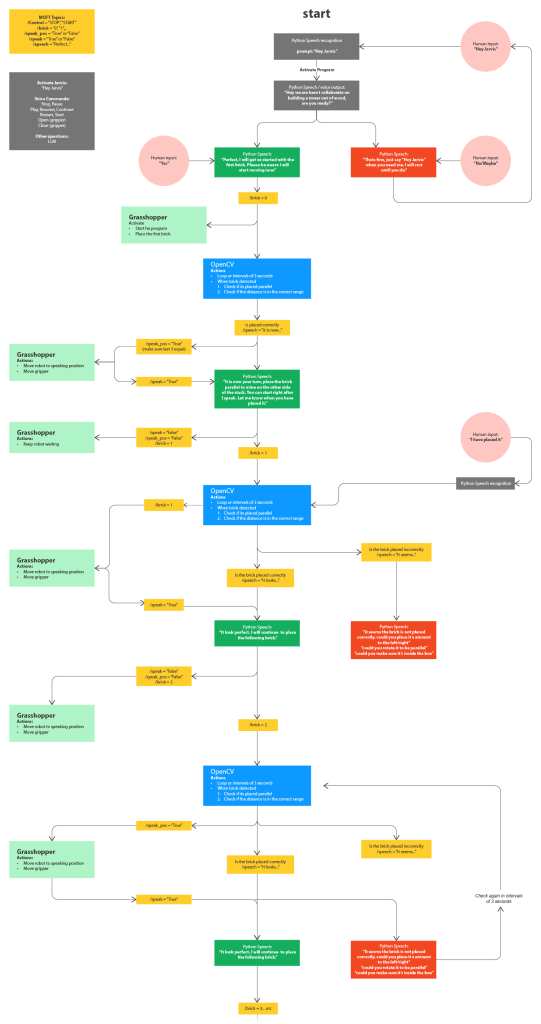

The following briefly describes the runtime logic used for this task, utilizing MQTT topics to coordinate interactions between the robot and the human participant. The overall logic is as follows:

• The robot receives the brick number. If the number is even, it is the robot’s turn to pick up and place the brick. If the number is odd, the robot waits in the speaking position while the human picks and places the brick.

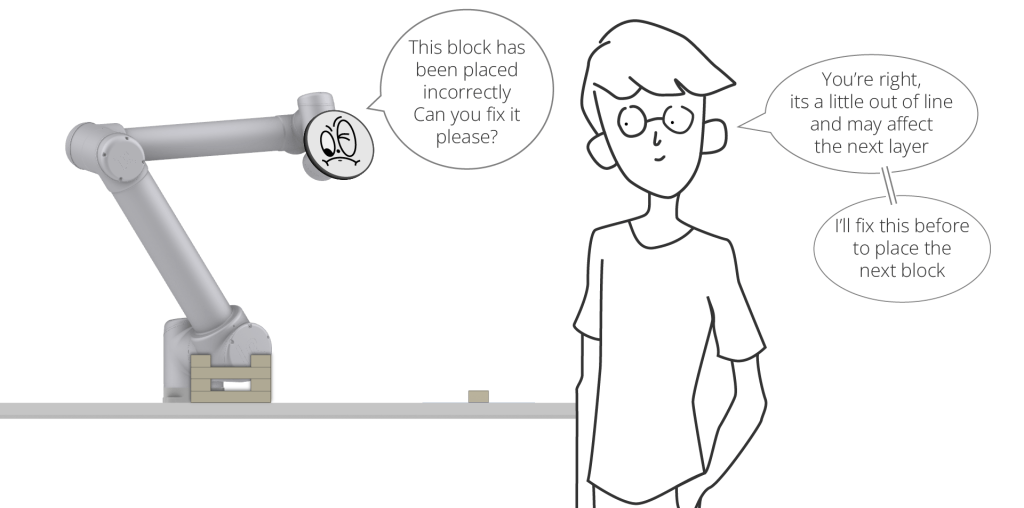

• Once the corresponding brick is placed, Computer 2 checks if the brick has been placed correctly. If so, an approval message is sent to the communication bot. If the brick is not in the correct position after a certain amount of time, a misalignment message is sent to the communication bot until the human corrects it.
• The communication bot is programmed to only discuss the correct or incorrect position of the brick while in the speaking position, making the conversation feel more natural.
• Once the current brick is correctly placed, the next brick number is sent, and the process repeats.

Interaction & communication node

This node was created to enhance communication between the human and the robot while also exploring the possibility of the robot taking the lead and being able to respond to any task-related question.
A wake-up word, “Hey, Jarvis!” is implemented so the human can signal when the robot should listen. Jarvis then asks if the human is ready to collaborate on the task and waits for confirmation before proceeding.
To make the interaction more natural, the node is also connected to ChatGPT 3.5, trained to provide more realistic responses, enhancing the user’s experience.

Validation node

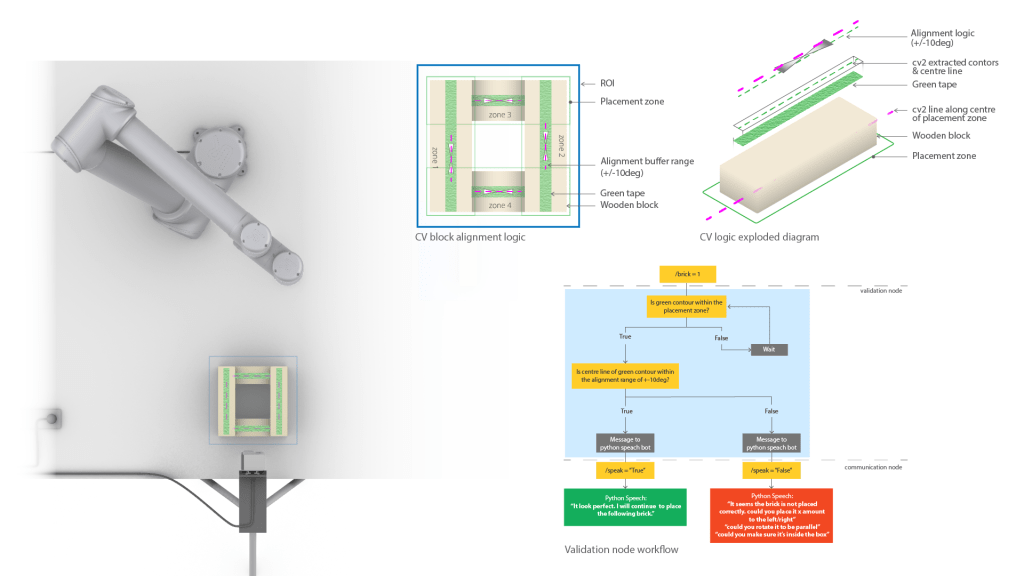

Using computer vision, a pixel-based square bounding box (blue) was created to track the placement of each piece. This box was subdivided into four quadrants (orange), with each turn designating a target quadrant (green) that rotates until the tower is complete (the target quadrant is determined by the brick number sent through MQTT).
To facilitate tracking, each piece was marked with green tape along its middle line. If the detected line falls below a certain pixel threshold, it is disregarded, indicating that the piece belongs to a previous round and preventing false positives.
Pieces must be placed within the targeted quadrant and properly aligned. A buffer range was established around the middle line to ensure correct alignment and orientation. If the piece falls within this range, it is considered aligned; otherwise, adjustments are needed.

CV development

Early in the development of the development of the validation node we explored performance differences between a depth camera and an Open CV script. We found that the depth camera could not provide meaningful and reliable data to write commands to the exaction node as the tower was being stacked by hand.
Proceeding with an Open CV script that would detect a green strip of tape we found was the easiest to move forward with as it allowed for the most control over cv data and we very easy to rapidly prototype with as we could use our webcams to explore ideas

ROI / Data filtering / Hierarchy

Further intelligence was implemented into the CV script so to aid in data filtering between each new block that needed to be placed in the required zone. Logic such as: ROI, centerline alignment, length of centerline, placement zones to name a few.

Below is a recording of the CV script as a robot places a block incorrectly, followed by the user correcting the placement of a block. All labels and dimension have been shown for clarity.

Execution node

Using ABxM, the robot, developed as a point-based (Cartesian) agent, was controlled to pick and place the pieces. This configuration allows precise movement and positioning of the robot, ensuring each piece is accurately placed in the Jenga-like tower.
Additionally, the robot was programmed to exhibit speaking behavior. When it has something to communicate or when it is the human’s turn, the robot moves to a designated speaking position.

Results

Although the communication bot was connected to a Generative AI, the developer’s computer being set to German resulted in the bot speaking with a strong German accent. This issue is planned to be addressed in a future iteration. However, this unexpected accent adds humor and entertainment to the interaction.

Interaction 01 – Audio interaction with regards to the project goal

Interaction 02 – User asks question specific to the project

Interaction 03 – User asks a question outside of the scope of the project

The validation system worked smoothly overall. Initial false positives due to shadows were quickly resolved by improving the lighting conditions. However, building a very tall tower was challenging because the camera was positioned at an angle rather than a top-down view. This perspective issue caused bricks to appear outside the designated quadrants even when correctly placed.

There were also coordination issues with the robot moving to the speaking position in sync with the rest of the system. This was resolved by implementing necessary delays, ensuring smooth transitions and accurate communication during the task.

Further research

To enhance the methodology, the following changes are identified as promising areas for exploration:

• Constraining the LLM for Task-Specific Understanding: Enhancing the language model’s comprehension of each specific task to ensure more accurate and relevant interactions.
• Adaptive CV for Dynamic Placement Zones: The computer vision system could be improved to include an adaptive placement zone that accommodates perspective changes as the tower rises. Further testing with depth sensors could be beneficial for more accurate placement.
• Deeper Integration with ABxM Library: Gaining a better understanding of the ABxM library to refine control over robotic motions and implement additional behaviours for more efficient and precise operations.

In addition, a user study is planned to test our hypotheses and refine the user experience. This will help eliminate any biases we, as the system’s creators, may have and ensure a more objective evaluation.

Credits

Considering Human-Centric HRC through the lens of Feminist Technoscience
MRAC workshop 3.2 in partnership with the University of Stuttgart
Faculty: Gili Ron (ICD), Lasath Siriwardena (ICD), Samuel Leder (ICD), Nestor Beguin (IAAC)
Team members: Feargal Murphy, Ainhoa Arnaiz Lecuona, Henry Boy, Andrés Said Rodríguez Ortiz and Geetham Pasumarty
